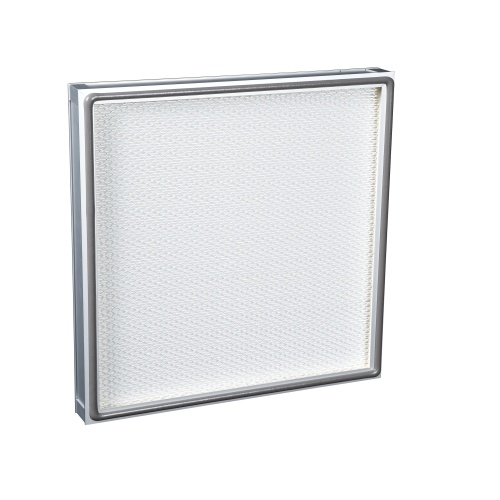

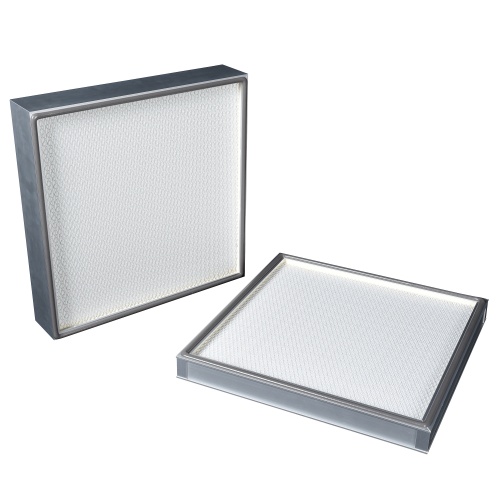

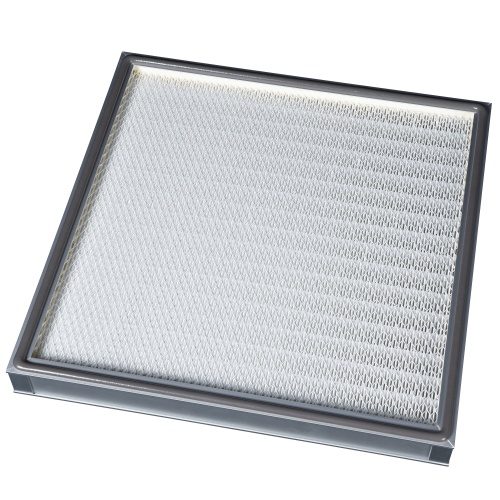

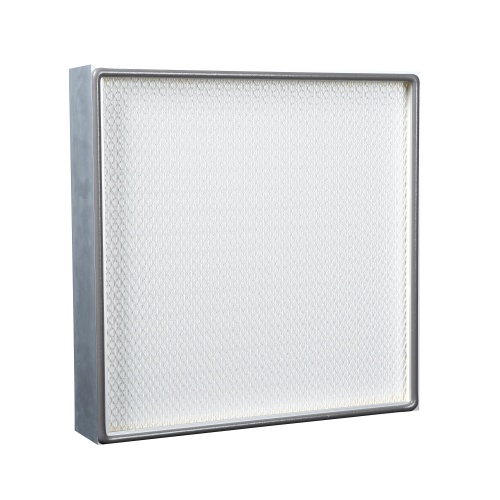

The HEPA Turbulent Flow Filter is a high-efficiency air filtration solution designed for large-scale applications requiring absolute air purity. With a thicker profile compared to Laminar Flow HEPA filters, the HEPA Turbulent Flow Filter supports greater airflow volumes per hour while maintaining exceptional filtration efficiency. This makes the filter ideal for medical facilities, food production environments, animal housing areas, and medical manufacturing where contamination control is critical.
Filter Class: H13 (≥99.95%) and H14 (≥99.995%) efficiency for MPPS particles
Filter Media: Micro-glass fiber paper

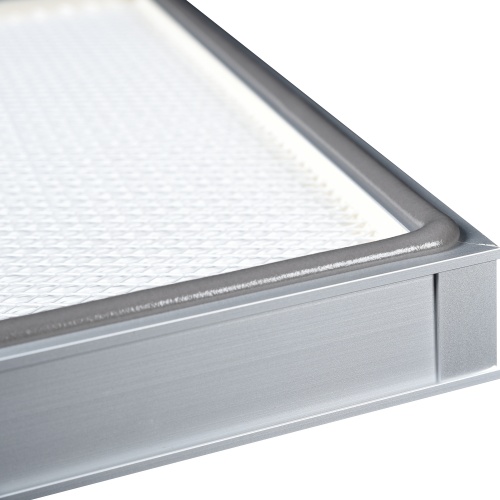

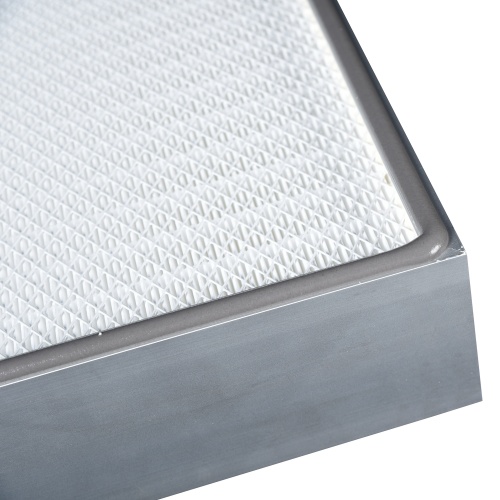

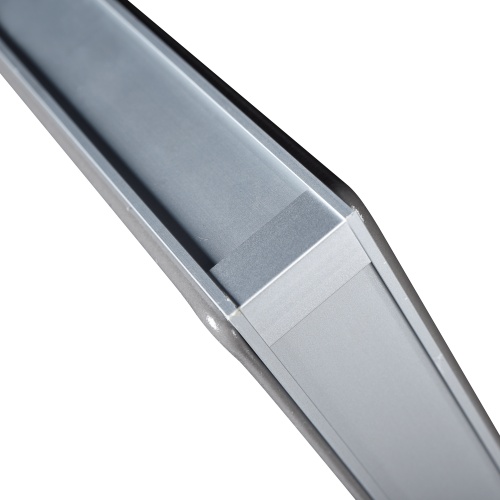

Frame Options: Anodized aluminum profile (68-115 mm) or MDF wooden frame
Separators: Hot melt glue for uniform spacing
Sealant: Two-component polyurethane for airtight sealing

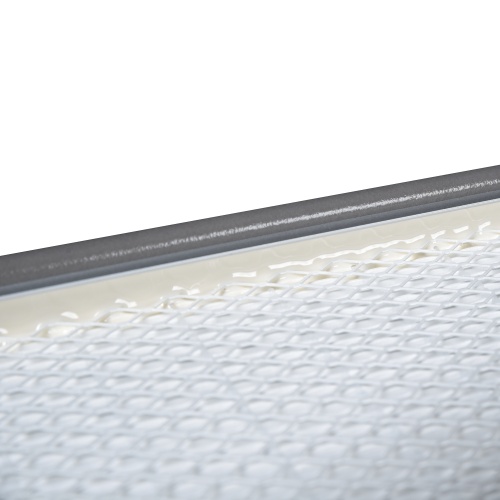

Face Guards: Epoxy-painted expanded aluminum grids (optional for wooden frames)

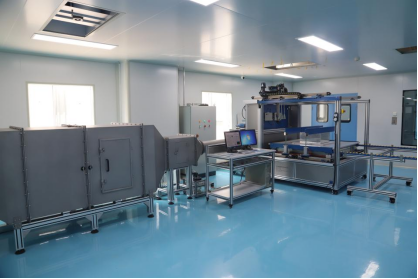

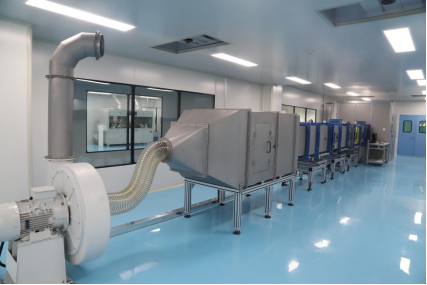

Every HEPA Turbulent Flow Filter undergoes individual leak testing and is certified to meet EN1822 standards. Each filter carries a unique serial number for full traceability, ensuring confidence in quality and performance.
Superior Air Filtration Efficiency
The HEPA Turbulent Flow Filter achieves a filtration efficiency of ≥99.995% for MPPS (Most Penetrating Particle Size) particles in H14 class and ≥99.95% in H13 class. This level of performance ensures the removal of dust, spores, bacteria, and other harmful airborne contaminants.
Thicker Profile for High Airflow
The HEPA Turbulent Flow Filter is designed with a thicker profile, allowing for higher air volume throughput. This feature makes the filter suitable for large spaces, such as product preparation areas, medical laboratories, and animal agriculture zones, where higher airflow is necessary.
Durable Construction
The HEPA Turbulent Flow Filter uses micro-glass fiber media, an anodized aluminum or MDF frame, and a polyurethane sealant. This robust construction ensures long-term durability and reliable performance under demanding conditions.
Versatile Applications
HEPA Turbulent Flow Filters are widely used in controlled contamination environments, cleanrooms, pharmaceutical production, food processing, animal agriculture, and medical manufacturing. The filters are particularly effective in controlling Avian Flu (Bird Flu) and other airborne pathogens.
Medical Facilities
HEPA Turbulent Flow Filters ensure sterile air quality in operating rooms, neonatal care units, and medical laboratories, meeting the highest cleanliness standards.
Food and Agriculture
The HEPA Turbulent Flow Filter is widely used in food production facilities, such as mushroom farming, to remove spores and contaminants that affect product quality. The filters also serve as a critical defense in animal agriculture, controlling pathogens like Avian Flu.
Cleanrooms and Manufacturing
For pharmaceutical production, electronics manufacturing, and medical product preparation, the HEPA Turbulent Flow Filter ensures absolute air purity. The high filtration efficiency makes the filter ideal for controlled environments where contamination can compromise operations.
Industrial Environments
HEPA Turbulent Flow Filters are used in industrial zones requiring exceptional air filtration to protect workers and maintain compliance with health and safety standards.
The HEPA Turbulent Flow Filter captures airborne contaminants using three filtration mechanisms:
Straining: Larger particles (10 microns and above) are too big to pass through the micro-glass fiber media and become trapped.
Interception: Medium-sized particles follow airflow but are captured as they collide with the fibers.
Diffusion: Ultra-small particles (below 0.3 microns) move randomly due to their low mass, hitting the fibers and becoming trapped.
The Most Penetrating Particle Size (MPPS) for HEPA filters is around 0.3 microns. The HEPA Turbulent Flow Filter demonstrates exceptional efficiency even at this weak point, ensuring outstanding performance.
Certified Performance
HEPA Turbulent Flow Filters comply with EN1822 standards and are individually tested for leakproof performance, guaranteeing superior air filtration results.
High Airflow Capacity
With a thicker profile, the HEPA Turbulent Flow Filter allows greater air volume, making it ideal for large spaces that demand absolute air purity.
Versatility Across Industries
From healthcare and agriculture to food processing and cleanrooms, the HEPA Turbulent Flow Filter provides reliable contamination control for diverse applications.
Traceable Quality
Each HEPA Turbulent Flow Filter is issued with a unique serial number, enabling complete traceability back to the filter media batch and roll, ensuring accountability and transparency.
Maintenance of HEPA Turbulent Flow Filter
Regularly monitor airflow and pressure drop to maintain optimal filter performance.
Replace HEPA Turbulent Flow Filters once they reach the recommended pressure loss threshold.
Ensure proper handling during maintenance to prevent damage to the filter media.
The HEPA Turbulent Flow Filter delivers unmatched performance, durability, and efficiency for absolute air purification in critical environments. Contact us today to discuss your specific needs or to request a quote for HEPA Turbulent Flow Filters tailored to your application!
