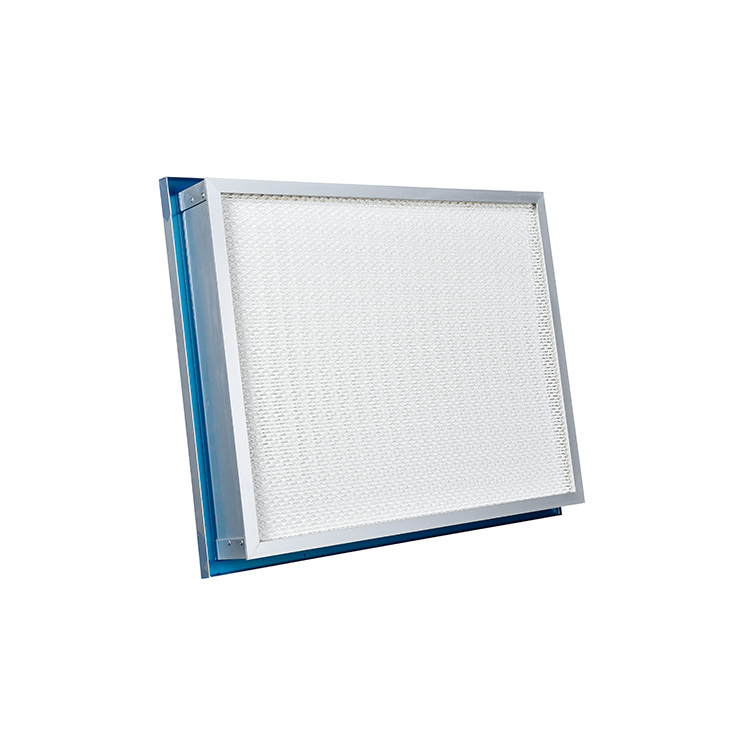

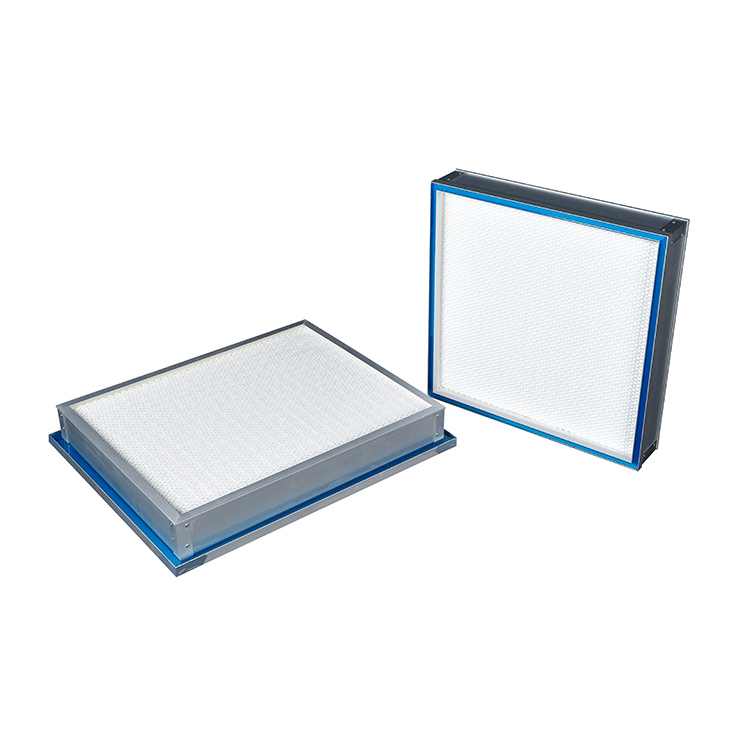

The Gel Seal HEPA filter, ideal for cleanroom terminal installations, uses micro glass fiber media for high filtration efficiency and extended service life. Widely used as terminal filtration of cleanroom. Its unique gel sealant ensures zero side leakage, enhancing air purity while being environmentally friendly.
Frame material: Galvanized sheet, Anodised extruded aluminum, SUS304
Filter media: Micro glass fibre paper
Slot gasket: Gel sealant glue
Filter class: H13/H14 (EN1822)
Initial resistance: 220 ~ 250 Pa
Standard size: 610 x 610mm,610 x 305mm, 450 x 450mm
Standard depth: 69/90/105mm
|
Filter Media: |
Glass fiber / PTFE/ PP |
|
Frame: |
MDF/Aluminum |
|
Sealant: |
Two component polyurethane glue |
|
Gasket: |
EPDM / EVA / PU foamed |
|
Separator: |
Hot-melt adhesive |
|
Frame depth (mm): |
Top: 81/95 Side:69/75/90/93/104/117 Both sides |
|
Protective net: |
Both sides |
|
Max.working temperature: |
70°C |
|
Model |
Type |
Material |
Size（mm）（WxHxD） |
Air flow（m³/h） |
Initial pressure(≤Pa) |
Filteration area（m²） |
Velocity（m/s） |
Filteration grade（EN1822-4） |
|
JJGX |
No separator（W） |
fiber glass（BX） |
610x305x69 |
500 |
90 |
4.92 |
0.75 |
H14 |
|
|
|
PTFE |
610x610x69 |
1000 |
90 |
9.84 |
0.75 |
H14 |
|
|
|
|
915x610x69 |
1000 |
90 |
14.77 |
0.75 |
H14 |
|
|
|
|
915x610x69 |
900 | 90 | 14.77 | 0.45 |
U16 |
Note: More specifications can be customized
Benefits of production
Easy installation
Long service life
Perfect sealing
Eco-friendly adhesive
State-of-the-art cleanroom workshop.
100% performance testing conducted in our laboratory.
Buyers can monitor production progress in real-time via mobile app.
Custom Designed Gel seal HEPA filter of Various Sizes, Shapes and Materials.
