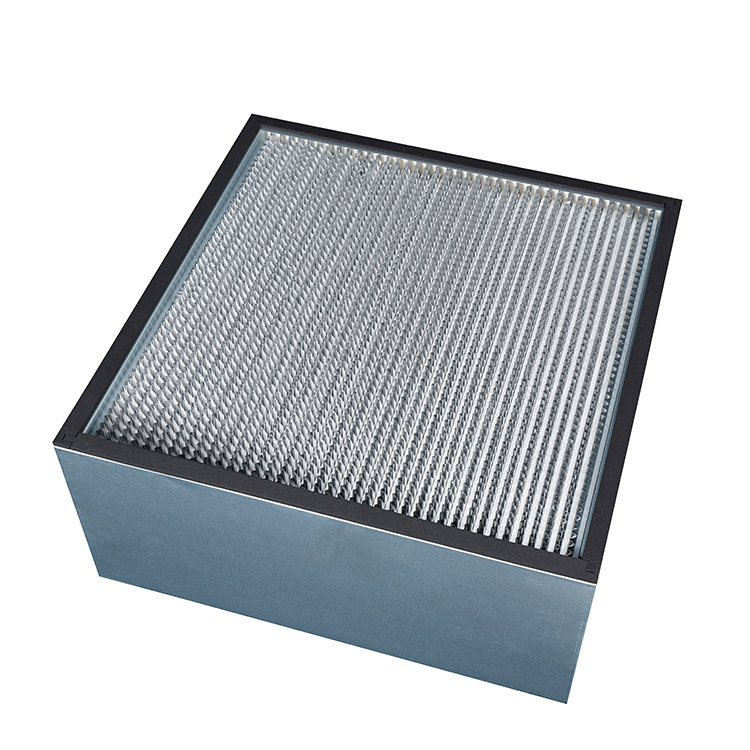

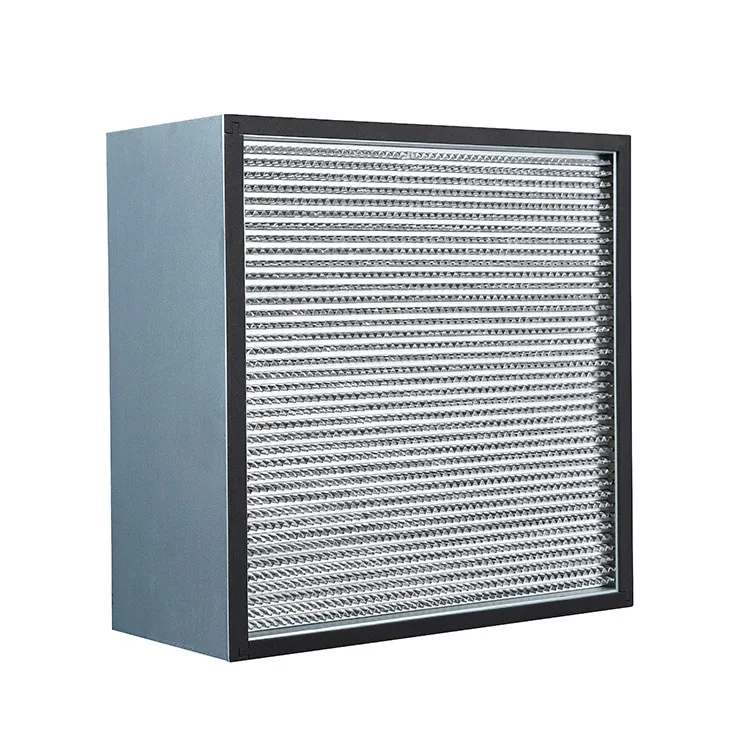

Separator Type HEPA Filters are designed for high-efficiency air filtration in industrial and medical environments. They are ideal for terminal filtration in air conditioning systems and localized purification equipment. These filters adapt seamlessly to varying air flow conditions, ensuring superior performance and reliability.
Material Overview
*Deep Pleated
*Low pressure drop with high capacity
*Available in varieties of cell sides and efficiencies
*All HEPA filter efficiency is tested in accordance with EN 1822
Application
Used as final filter in hospital, pharmaceutical and food processing industry
Standard
EN1822:2009 : H13, H14
Filter Depth (Inches) : 12″
Media Type : Micro glass fifiber
Frame Material : Extruded aluminum/ Folding aluminum / Galvanized steel/Stainless steel/ MDF

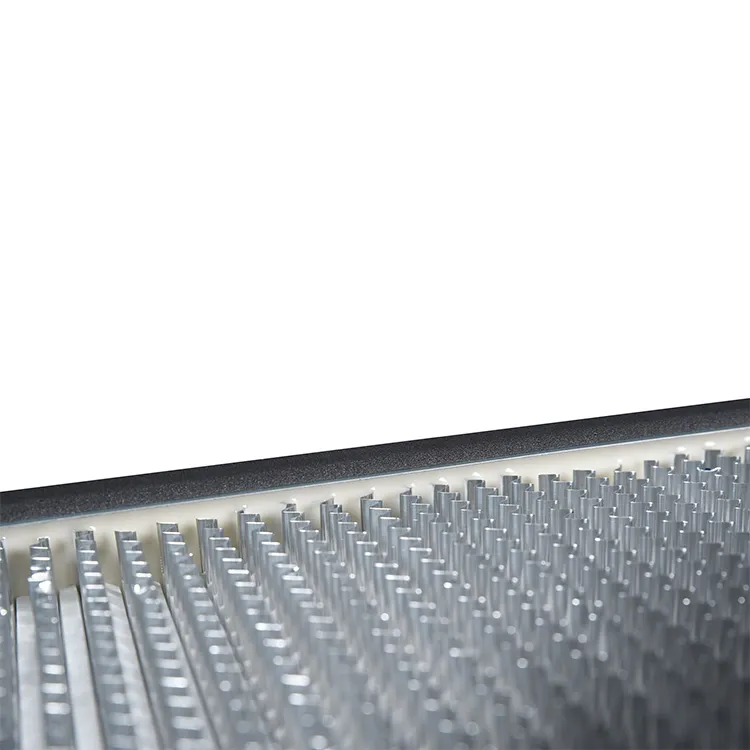

Separator Style : Offset paper / Aluminum foil
Gasket Material :PU foam gasket / EVA / EPDM
Gasket Position : Downstream, Upstream, Both sides
Header Type : Single Flange, Double Flange, Box Type
Rec. Final Resistance : 2x Initial pressure drop
Max Operating Temperature : Offset paper50℃Aluminum foil:100℃
Introduction
|
Model |
Nominal Size Inches (H*W*D) |
Actual Size (mm)
(H*W*D) |
Rated Airflow (CMH) |

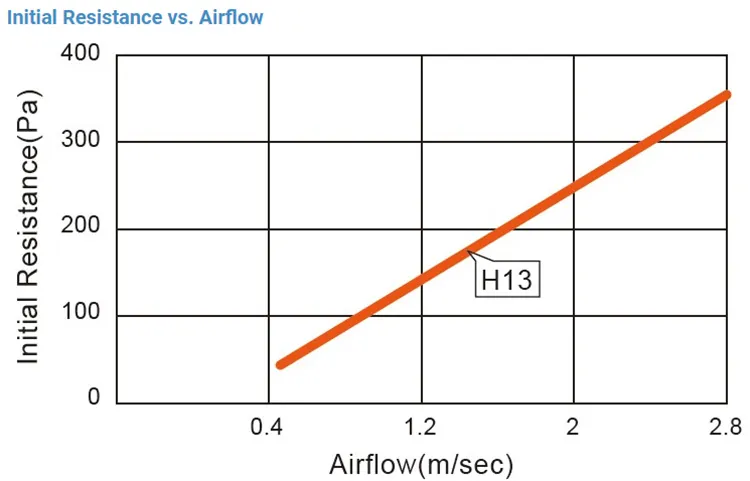

Rated Initial Reslstance (Pa) |
|
H13 Classfication |
||||
| BA |
12*24*12 |
305*610*290 |
850 |
250 |
|
24*24*12 |
610*610*290 |
1700 |
|
|
|
H14 Classfication |
||||
|
BA |
12*24*12 |
305*610*290 |
850 |
250 |
|
24*24*12 |
610*610*290 |
1700 |
|
|
|
H13 Classfication (Hl) |
||||
|
BA |
12*24*12 |
305*610*290 |
1700 |
350 |
|
24*24*12 |
610*610*290 |
3400 |
|
|
|
H14 Classfication (Hl) |
||||
| BA |
12*24*12 |
305*610*290 |
1700 |
350 |
|
24*24*12 |
610*610*290 |
3400 |
|
|
Other dimensions are available on request
