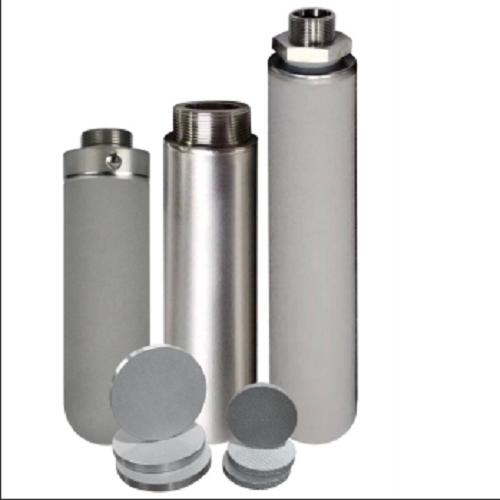

Titanium Powder Sintered Porous Filter
  • Titanium Powder Sintered Porous FilterTitanium Powder Sintered Porous Filter
  • Titanium Powder Sintered Porous FilterTitanium Powder Sintered Porous Filter
  • Titanium Powder Sintered Porous FilterTitanium Powder Sintered Porous Filter
  • Titanium Powder Sintered Porous FilterTitanium Powder Sintered Porous Filter

Titanium Powder Sintered Porous Filter

One of the most advanced solutions is the Titanium Powder Sintered Porous Filter, which has been crafted using high-quality titanium powder and a sophisticated sintering process. This state-of-the-art filtration technology is engineered to meet the demanding requirements of various industrial applications, providing exceptional filtration performance and durability. Thanks to its advanced design and construction, the Titanium Powder Sintered Porous Filter represents a cutting-edge solution that represents the future of industrial filtration technology.

Send Inquiry

Product Description


The Titanium Powder Sintered Porous Filter boasts numerous features that set it apart. Constructed from 99.9% pure titanium powder, it guarantees exceptional filtration efficiency across various processes. The sintering process allows for precise control of pore size distribution, resulting in consistent and reliable filtration performance. Its inherent mechanical strength enables it to withstand high pressure and harsh conditions, while its corrosion resistance makes it a prime choice for use with aggressive chemicals and challenging environments. Additionally, the filter tolerates high temperatures up to 300°C, suitable for hot processes. What's more, it is easy to clean and maintain, and its service life can be significantly extended through backflushing, ultrasonic cleaning, and other methods.

Advantages of Titanium Powder Sintered Porous Filter

1. Enhanced filtration efficiency
2. Long life
3. Environmentally friendly
4. Wide applicability
5. Chemical inertness ensures safety

Technical parameter of Titanium Powder Sintered Porous Filter

Cartridge structure Filter media Titanium powder
Seal ring material Silicone,Viton,EPDM,PTFE
Working situation Max.working temperature ≤200℃
Max. working pressure drop 300Mpa/23℃
Rating 0.45, 0.5, 1, 2, 5, 10, 20, 50, 75, 100 micron
Length 125, 250, 350, 500, 750, 1000 mm
OD 20, 30, 50, 60, 70, 90mm
Connector M20 M30 M32 222 226
Note: All the above size are the normal size. Customized size is possible. Jinjue Filter could help to design according to the application and requirement.

Application of Titanium Powder Sintered Porous Filter

The Titanium Powder Sintered Porous Filter is a multi-purpose solution for chemical, pharma, water treatment, food/beverage, aerospace, automotive, and petrochemical industries. It filters corrosives, maintains purity in pharma, ensures clean water, and preserves food quality. It prevents catalyst contamination in petrochemicals and filters materials for aerospace/automotive parts. Leveraging this advanced filter technology, industries ensure top-quality products with a sustainable, efficient production process. As industries evolve, this filter remains poised to exceed their needs, delivering reliable filtration for a cleaner, safer future.

Product Details


Hot Tags: Titanium Powder Sintered Porous Filter, China, Manufacturer, Supplier, Factory, High Quality
