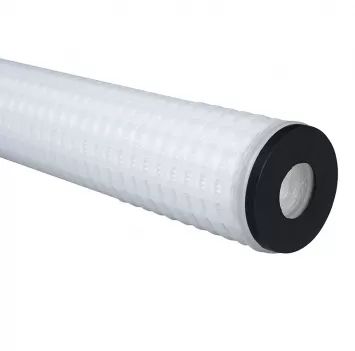

The JinJue PVDF Filter Cartaidge, with its wide chemical compatibility, strong hydrophobicity, resistance to high-temperature and oxidizing agent sterilization, and 100% bacteria and particle retention capability, is widely used in industries such as the pharmaceutical industry. Choosing the PVDF filter cartridge ensures stable and reliable filtration performance to meet diverse filtration needs.
| Outer diameter | 68mm、69,mm (2.75") |
| Inner diameter | 33mm(1.3") |
| Length (inch) | 5, 10, 20, 30, 40 |
| Removal ratings (µm) | 0.1, 0.22, 0.45, 1.0, 3.0,5.0 |
| Effective Filter Area | ≥0.65㎡/10in |
| Maximum operating temperature | 80 ˚C / 176 ˚F |
| Maximum forward differential pressure | 0.4MPa @ 23 ˚C /58.8 psid @ 73.4 ˚F |
| Steam sterilisation | 121℃/30min |
| Endotoxin | ≤0.25EU/ml |
| Dissolved matter | ≤30mg/10in |
| Integrity | Inspection of each filter element |
