MERV (Minimum Efficiency Reporting Value) is a standard used in the United States to evaluate the efficiency of air filters. It measures the filter's ability to capture particles in the air. The higher the MERV rating, the higher the efficiency of the filter, meaning it can capture smaller particles. This rating system is commonly used for air filters in HVAC (Heating, Ventilation, and Air Conditioning) systems, helping users select the appropriate filter for their needs.
MERV Rating Scale
The MERV scale ranges from 1 to 16, with higher numbers indicating higher efficiency in capturing smaller particles. Below is a detailed introduction to different MERV levels:

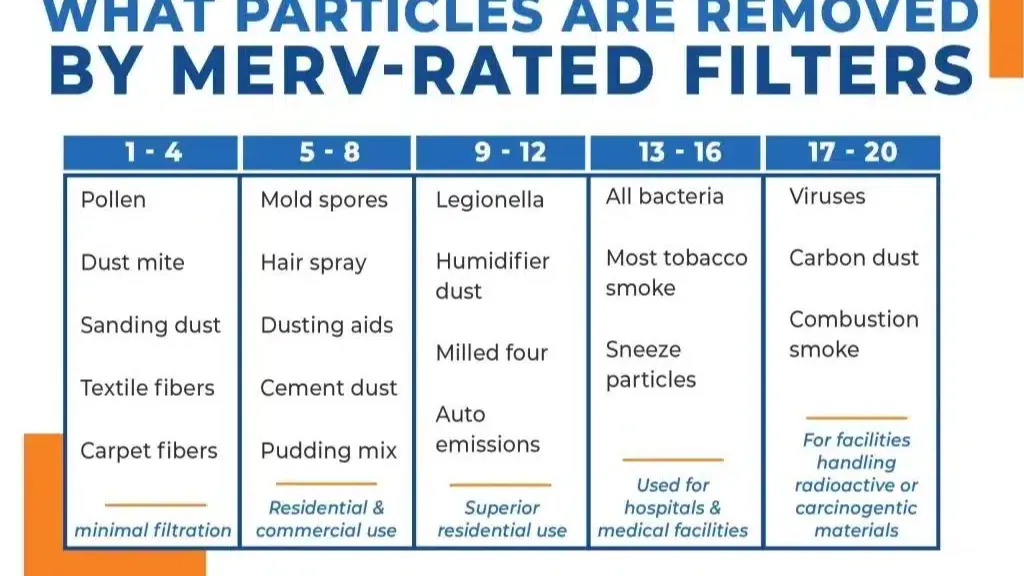

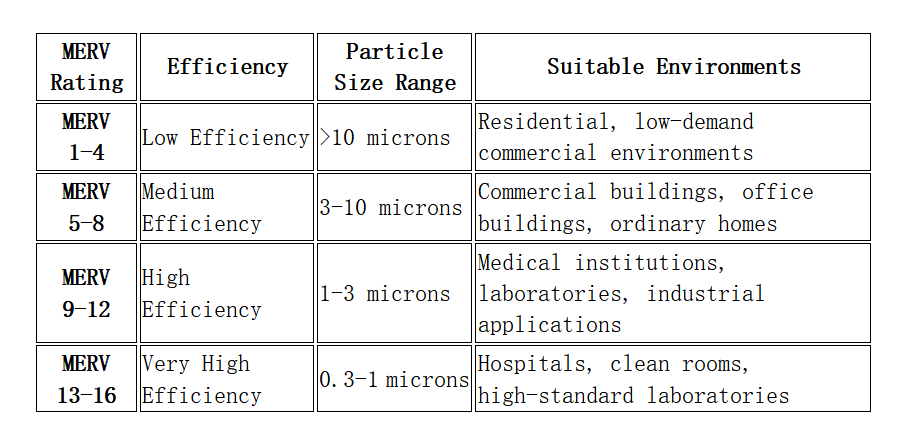

Breakdown of MERV Ratings
1. MERV 1-4 (Low Efficiency Filters):
· Particle Size Range: >10 microns
· Effectiveness: Primarily removes larger particles like dust, sand, and hair, but ineffective for smaller particles like pollen or smoke.
· Typical Applications: Residential use, low-demand commercial environments, inefficient ventilation systems.
2. MERV 5-8 (Medium Efficiency Filters):
· Particle Size Range: 3 to 10 microns
· Effectiveness: Effective at removing small particles like dust, pollen, and some smoke. Suitable for most commercial and residential applications.
· Typical Applications: Shopping malls, office buildings, schools, residential homes.
3. MERV 9-12 (High Efficiency Filters):
· Particle Size Range: 1 to 3 microns
· Effectiveness: Captures bacteria, mold spores, smaller smoke particles, and allergens. Suitable for environments requiring good air quality.
· Typical Applications: Hospitals, laboratories, pharmaceutical manufacturing, clean rooms, industrial environments.
4. MERV 13-16 (Very High Efficiency Filters):
· Particle Size Range: 0.3 to 1 microns
· Effectiveness: Removes almost all small particles, including harmful substances like bacteria, viruses, and smoke.
· Typical Applications: Hospitals, clean rooms, semiconductor fabrication, pharmaceutical plants, high-standard laboratories.
Practical Applications of MERV Ratings
1.Residential Applications:
· For most households, MERV 5-8 filters are sufficient to capture larger particles like dust, pollen, and hair.
· If family members have allergies or respiratory issues, MERV 9-12 filters should be considered for better air quality.
2.Commercial Buildings:
· MERV 8-12 filters are commonly used in commercial buildings to effectively remove pollen, smoke, and bacteria, ensuring better indoor air quality.
· For higher-demand environments like hospitals and laboratories, MERV 13 or higher filters are necessary.
3.Hospitals and Clean Environments:
· Hospitals, laboratories, and pharmaceutical plants require MERV 13-16 filters, or even HEPA filters (MERV 17 and above) to ensure the highest level of air purification.Balancing MERV Rating and AirflowWhile higher MERV ratings offer better filtration, they typically also increase the airflow resistance. This can strain HVAC systems, reducing their efficiency, increasing energy consumption, and even potentially impacting the system's performance.
When choosing a filter, it is crucial to balance air flow and filtration efficiency. A filter with a very high MERV rating might place undue stress on the HVAC system, leading to increased maintenance and energy costs. Therefore, it is important to choose the appropriate MERV level based on your specific requirements, system design, and air quality needs.
