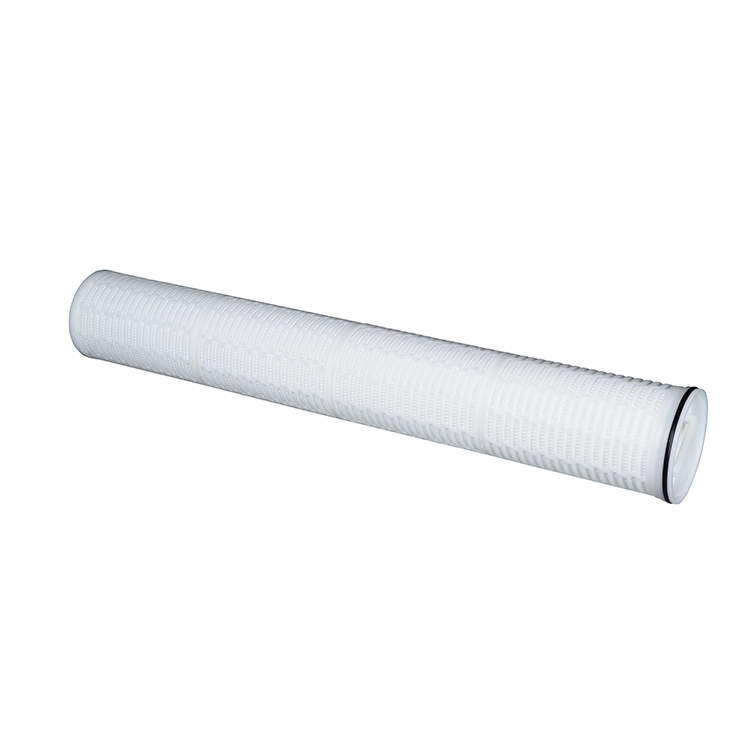

The High Flow Pleated Filter Cartridge is engineered for a wide range of industries, such as pharmaceuticals, food processing, microelectronics, and oil & gas. With a high dirt-holding capacity and flow rate of up to 500 GPM per cartridge, it provides efficient filtration with fewer replacements, minimizing downtime. Featuring a filtration rating from 1 to 100 microns, the pleated design maximizes surface area for superior contaminant removal.
The High Flow Pleated Filter Cartridge is designed for high-volume applications with a flow rate of up to 500 GPM, reducing the frequency of filter changes. Its pleated design increases the effective filtration area to ≥6㎡ per 40-inch cartridge (152 mm OD), enhancing contaminant retention and extending service life.

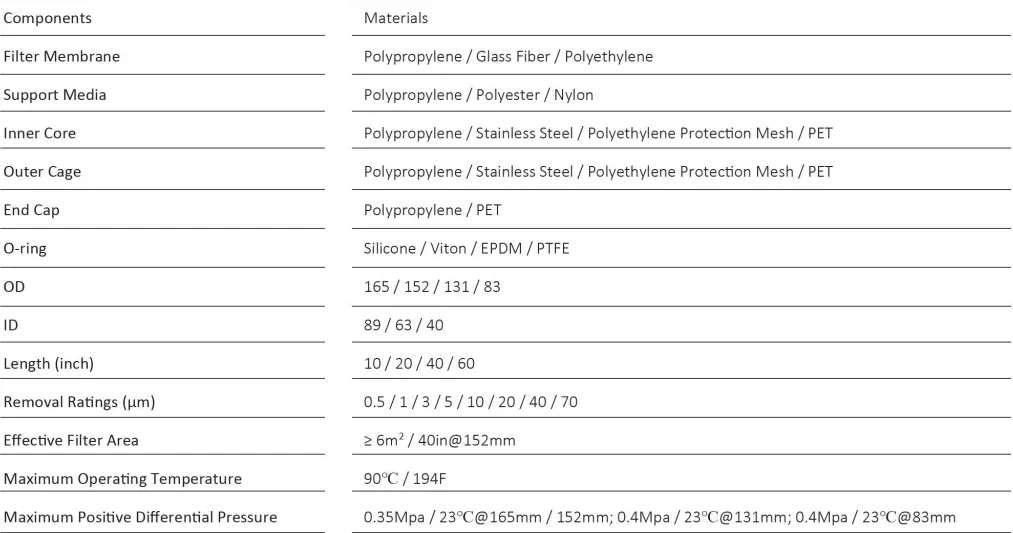

Filter Membrane：Polypropylene/Glass Fiber/ Polyethylene
Support Media：Polypropylene/Polyester/Nylon
Inner Core：Polypropylene/Stainless Steel/Polyethylene Protection Mesh /PET
Outer Cage：Polypropylene/Stainless Steel/Polyethylene Protection Mesh /PET
End Cap：Polypropylene/PET
O-ring：Silicone/Viton/EPDM/PTFE
OD：165/152/131/83
ID：89/63/40
Length (inch)：10/20/40/60
Removal Ratings (um)：0.5/1/3/5/10/20/40/70
Effective Filter Area： ≥6㎡/40in@152mm
Maximum Operating Temperature：90°C/194F
Maximum Positive Differential Pressure：0.35Mpa/23°C@165mm/152mm;0.4Mpa/23°C@131mm;0.4Mpa/23°C@83mm

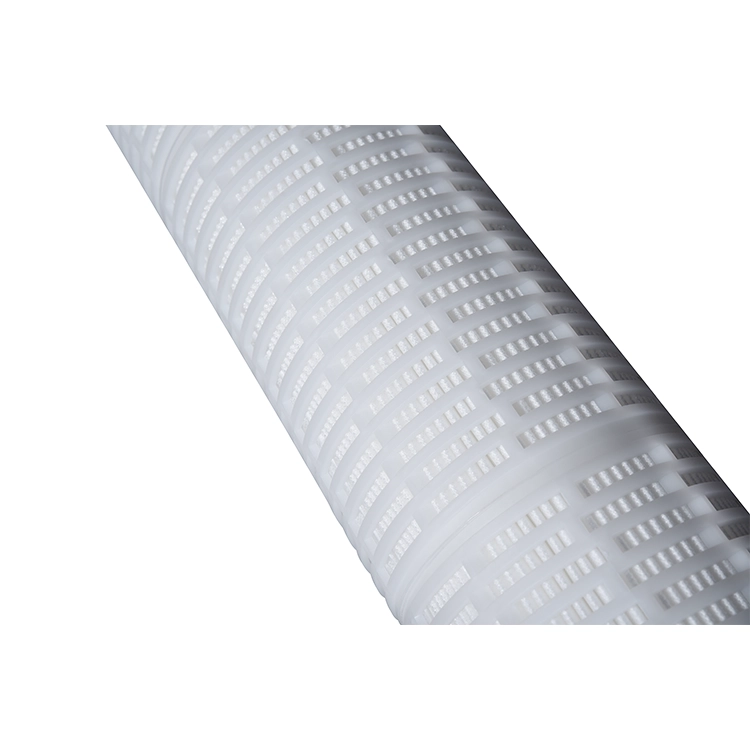

Filtration Media and Construction:
- Filter Membrane: Available in Polypropylene, Glass Fiber, or Polyethylene, the membrane offers versatility for handling different types of contaminants across various industries.
- Support Media: Made from Polypropylene, Polyester, or Nylon, ensuring structural stability and durability under high flow rates and pressure.
- Inner Core and Outer Cage: Constructed from Polypropylene, Stainless Steel, or Polyethylene Protection Mesh/PET, the core and cage provide additional mechanical support, allowing the filter to maintain integrity even in demanding conditions.
- End Cap: Composed of Polypropylene or PET, offering reliable sealing and ensuring compatibility with various housings.
Operating Parameters:
- Outer Diameter (OD): Available in sizes of 165 mm, 152 mm, 131 mm, and 83 mm.
- Inner Diameter (ID): Options include 89 mm, 63 mm, and 40 mm, making the High Flow Pleated Filter Cartridge adaptable to various housing configurations.
- Lengths: The cartridge comes in lengths of 10, 20, 40, and 60 inches, providing flexibility for different system requirements.
Filtration Precision:
- With removal ratings ranging from 0.5 to 70 microns, the High Flow Pleated Filter Cartridge offers precision filtration suitable for a wide range of applications, from fine particulate removal to coarse filtration. This versatility ensures efficient contaminant control in industries like oil & gas, water treatment, and chemical processing.
Pressure and Temperature Tolerance:
- Maximum Operating Temperature: The cartridge can operate at temperatures up to 90°C (194°F), making it suitable for high-temperature applications.
- Maximum Positive Differential Pressure: The filter handles up to 0.35 Mpa at 23°C for 165 mm and 152 mm OD cartridges, and up to 0.4 Mpa for 131 mm and 83 mm OD cartridges. This ensures that the High Flow Pleated Filter Cartridge performs effectively even in high-pressure systems.

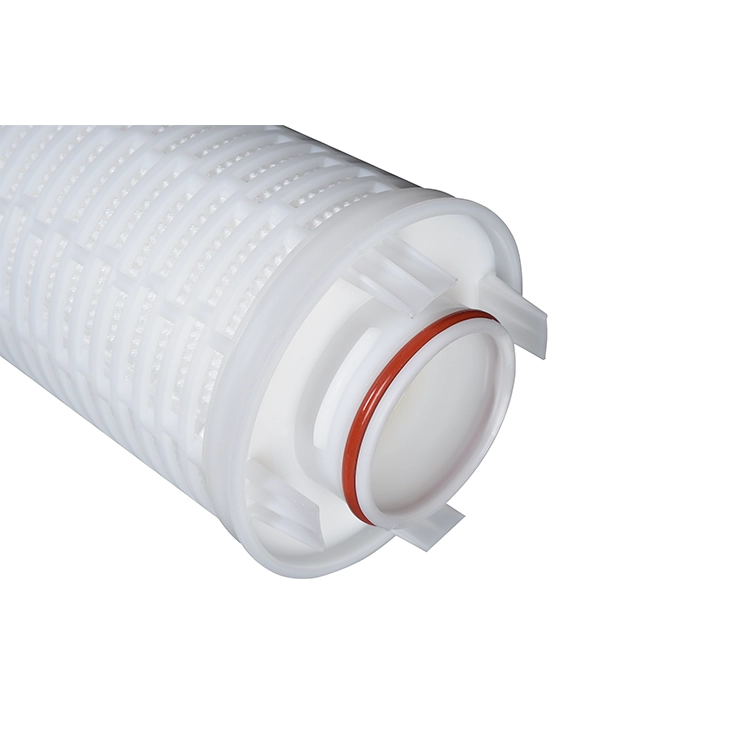

Sealing Options:
- The O-ring seals are available in materials such as Silicone, Viton, EPDM, or PTFE, providing reliable sealing and compatibility with a variety of chemicals and operating conditions.
Applications:
- The High Flow Pleated Filter Cartridge is widely used in industries such as water treatment, oil & gas, pharmaceuticals, and power generation due to its high dirt-holding capacity and robust construction. The range of available sizes, materials, and micron ratings make it a versatile and dependable solution for critical filtration systems.
In summary, the High Flow Pleated Filter Cartridge offers superior filtration efficiency, a broad range of material options, and robust performance in demanding environments. Its flexible design ensures compatibility with various systems, making it the ideal choice for industries seeking reliable, high-performance filtration solutions.

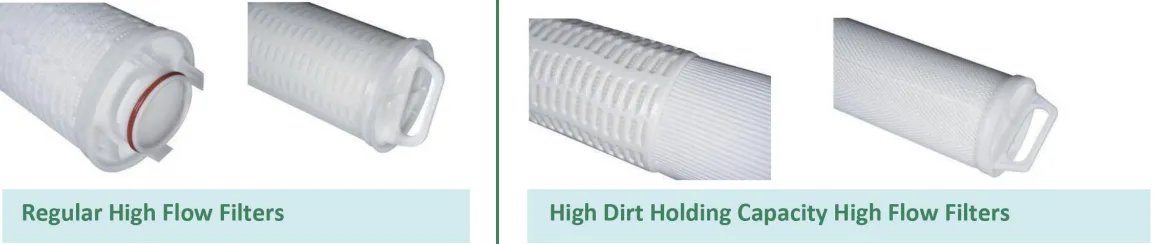

Regular High Flow Filters are made of Conventional internal and external support and filter membranes
Additional Layer is added for dirt-holiding, Gradient filtering layer collocation, the service life is 3-5times longer than the regular type. The internal and external support has high strength and higherpressure resistance.
Main applications
RO Pre filtration, process water (circulating water,condensed water, ground, regeneration, waste water, seawater desalination, petrochemical, power
plant water treatment system security filtration
