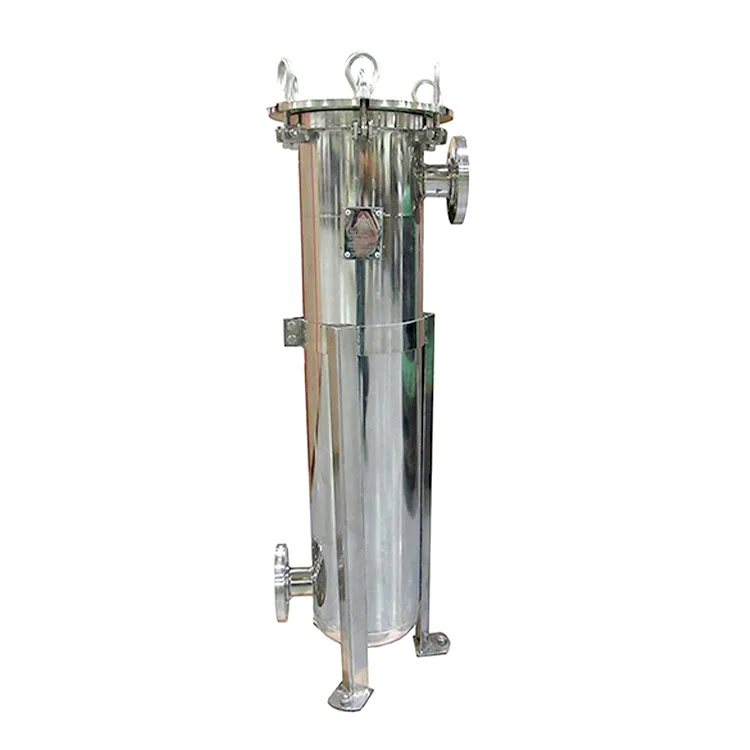

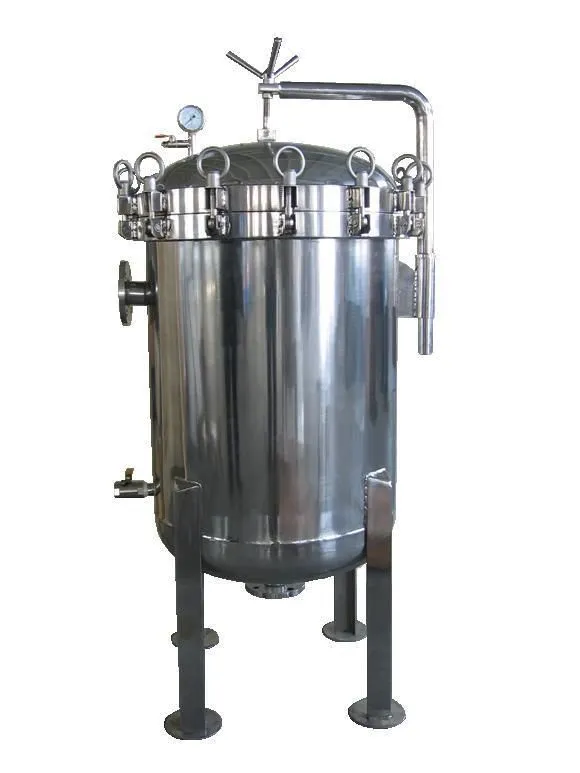

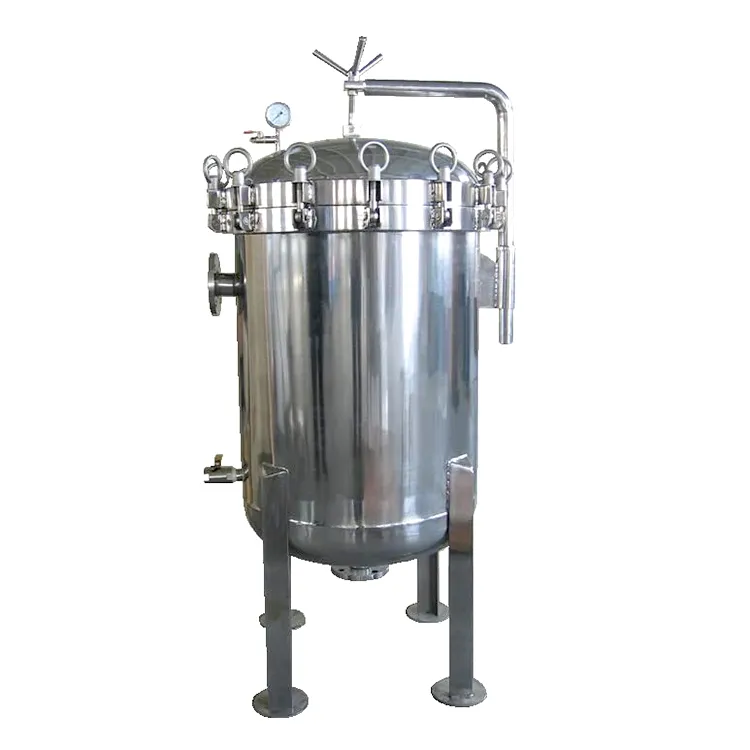

High Flow Filter

A High Flow Filter is a filter that can handle a large amount of fluid, and the liquid flow rate it can filter is much greater than the capacity of an ordinary filter element. It usually consists of a large filter element and a filter body with a large internal capacity to effectively filter impurities, solid particles and other impurities in the liquid.

Send Inquiry

Product Description


Advantages of High Flow Filter:

1. Efficient particle removal: The large filter element and large flow design of the high-capacity filter can effectively filter out particles and impurities in the liquid, maintain the cleanliness of the liquid, and prevent pipes and equipment from clogging.
2. Long service life: Compared with ordinary filters, high-capacity filters can be used for a longer time because the materials and equipment design inside the filter element are more durable and strong.
3. Simple maintenance: The design of the high-capacity filter is simple and very convenient to maintain. Users can replace the filter element by themselves and operate without stopping the machine.
4. Reduce maintenance costs: The high-capacity filter can effectively protect equipment and systems from impurities and solid particles, reduce equipment loss, and reduce equipment maintenance and replacement costs.
5. Wide range of applications: The high-capacity filter can be used for liquid filtration in different fields, such as water treatment, oil fields, pharmaceuticals, chemicals, etc., and has a very wide range of applications.

Polishing parameters of High Flow Filter

Internal and external surface treatment Polished
Polishing type Mirror polished
Polishing accuracy inner surface Ra≤0.38μm, outer surface Ra≤0.4μm

Material of High Flow Filter

Filter housing SUS304, SUS316L
Exhaust&Discharge&Pressure Gauge SUS304, SUS316L
Quick installation bolt group SUS304
Support SUS304
Gasket silicone, fluororubber, EPDM

Material of Pipe Sanitary Filter

Filter housing SUS304, SUS316L
Exhaust&Discharge&Pressure Gauge SUS304, SUS316L
Quick installation bolt group SUS304
Support SUS304
Gaskets silicone, fluororubber, EPDM, PTFE, fluorine coated

Operating Conditions of High Flow Filter

Design pressure Working temperature Sterilization
≤ 1.0Mpa ≤80 ℃ online or sterilization cabinet 121C/30min

Connection Form of High Flow Filter

Cylinder connection quick installation bolt group/bolt group
Import and export flange/quick installation
Exhaust valve threaded/quick fit chuck
Blowdown valve flange/thread/quick fit chuck
Pressure gauge M14 * 1.5/quick fit chuck

Selection Table of High Flow Filter

Number of filter elements length of filter element inlet and outlet connection method inlet and outlet size filter material filter element interface type sealing ring
01 10 Flange F 32 SUS304(T) 3M(3M) Silicone (S)




SUS316L(S) PK(PAKER) EPDM (E)





PL(PALL) Nitrile (D)

Selection table

Number of filter elements Filter element length Inlet and outlet size Inlet and outlet size Filter material Filter element interface type Sealing ring
01 10 Flange F 32 SUS304(T) 3M(3M) Silicone (S)




SUS316L(S) PK(PAKER) EPDM (E)





PL(PALL) Nitrile (D)
