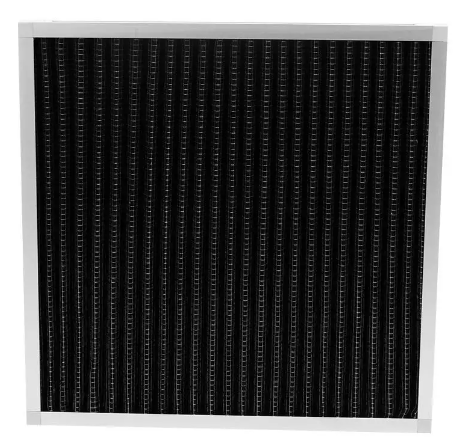

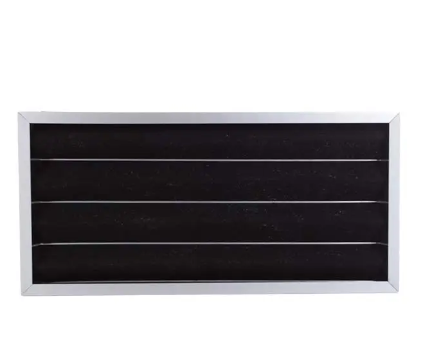

The Activated Carbon Panel Filter has a composite design made of high-efficiency activated carbon fibers and filter media, which provide exceptional adsorption capabilities. This filter effectively removes pollutants and ensures clean air by targeting foul-smelling substances such as benzene, formaldehyde, ammonia, carbon dioxide, as well as harmful gases like NO2 and SO2. It is ideal for a wide range of HVAC systems and can be produced as bag filters or folded filters.
Filter media：Activated Carbon Fiber
Frame Material：Aluminium / Galvanized / Cardboard/Stainless Steel
Frame Thickness (mm)：21/25/46/50/69/80/90/96
Sealant：White Latex
lodine Value：As request
Max.working temperature：50°C (Except Cardboard)
Max.Humidity：Cardboard: 70%
Others:100%
Technical parameter
The Activated Carbon Panel Filter utilizes high-efficiency activated carbon fiber as its primary filter media. This innovative design ensures that the filter effectively removes pollutants from the air, delivering clean air in various environments. The filter is particularly adept at adsorbing foul-smelling substances such as benzene, formaldehyde, ammonia, and harmful gases like NO2 and SO2, making the Activated Carbon Panel Filter essential for air purification.
Frame and Material Options
The frame material for the Activated Carbon Panel Filter can be chosen from aluminum, galvanized steel, or cardboard, providing versatility for different applications. For applications requiring enhanced durability, stainless steel frames are also available. The frame thickness options range from 21 mm to 96 mm, allowing for customization to fit specific installation needs. The white latex sealant used in assembly ensures an airtight fit, preventing any bypass of unfiltered air.
Performance Specifications
The Activated Carbon Panel Filter operates effectively at a maximum working temperature of 50°C, except for cardboard frames, which are suitable for environments with a maximum humidity level of 70%. Other frame materials can withstand humidity levels of up to 100%, making the Activated Carbon Panel Filter ideal for various HVAC systems. This robustness ensures that the filter maintains its performance in both high-temperature and high-humidity conditions.
Applications and Effectiveness
Activated Carbon Panel Filters are designed for use in a wide range of HVAC systems, making them a critical component for air purification in commercial and industrial settings. These filters effectively target and remove various pollutants, ensuring that air quality is significantly improved. The Activated Carbon Panel Filter’s ability to remove odors and harmful gases enhances indoor air quality, making spaces healthier and more pleasant.
Production and Availability
Our commitment to advanced R&D technology and strong production capabilities enables the manufacture of high-quality Activated Carbon Panel Filters. This dedication to quality ensures that filters maintain high sales volumes and ample inventory, allowing for reliable supply across diverse applications. Whether for commercial buildings, industrial facilities, or specialized environments, the Activated Carbon Panel Filter consistently meets the highest standards of air purification.
Conclusion
In summary, the Activated Carbon Panel Filter stands out for its high-efficiency activated carbon fiber media, versatile frame options, and excellent performance specifications. This filter effectively removes pollutants, ensuring clean air in various settings. With strong production capabilities and consistent availability, the Activated Carbon Panel Filter is the ideal solution for maintaining optimal indoor air quality in demanding environments.
Application
Activated Carbon Panel Filters are widely used in airports, subways, automobiles, electronics factories, nuclear powerplants, homes and central air-conditioning, hospitals and other fields.
Benefits
1.Good deodorizing effect
2.Various frame material
3.High Quality Activated Carbon Fiber or Felt.
Why choose jinjuefilter
1. We have specialized in the export of air filters for over 6 years.
2. We have our own factory and brand.
3. We provide OEM and ODM service ,sample production and service according to your demand.
4. The dimension can be customized.
5. The delivery date will be within 2 weeks.
6. The products have passed CE, ISO90012008,RoHS and SGS certification.
7. With independent R&D and design capabilities.
8. Well equipped with complete facilities and skilled staffs.
